Solar bench in Art Nouveau style

Art Nouveau Solar Bench

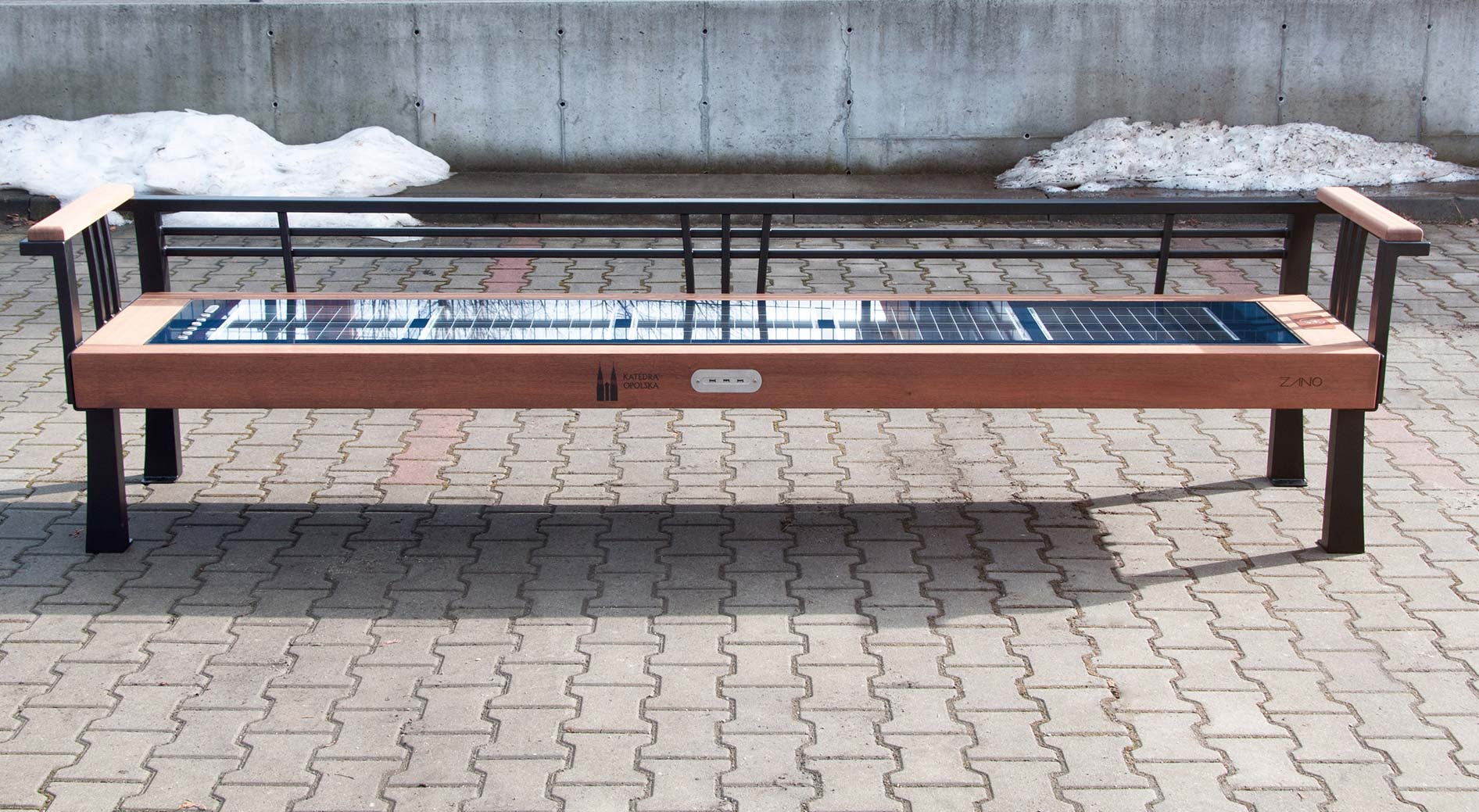

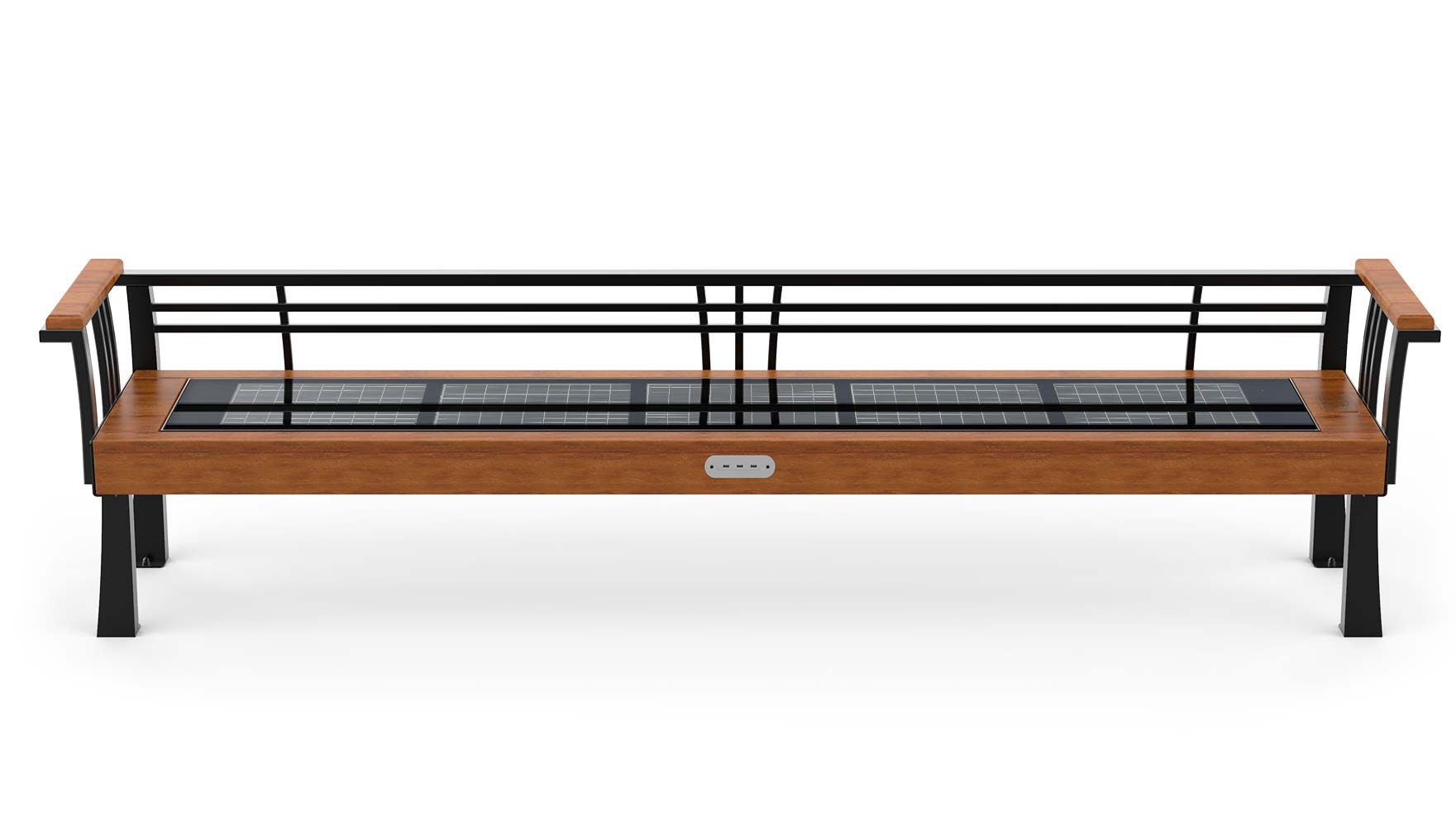

A stylish solar bench in an Art Nouveau style and wood trim to suit locations where a very modern style solar bench might look out of place.

Features

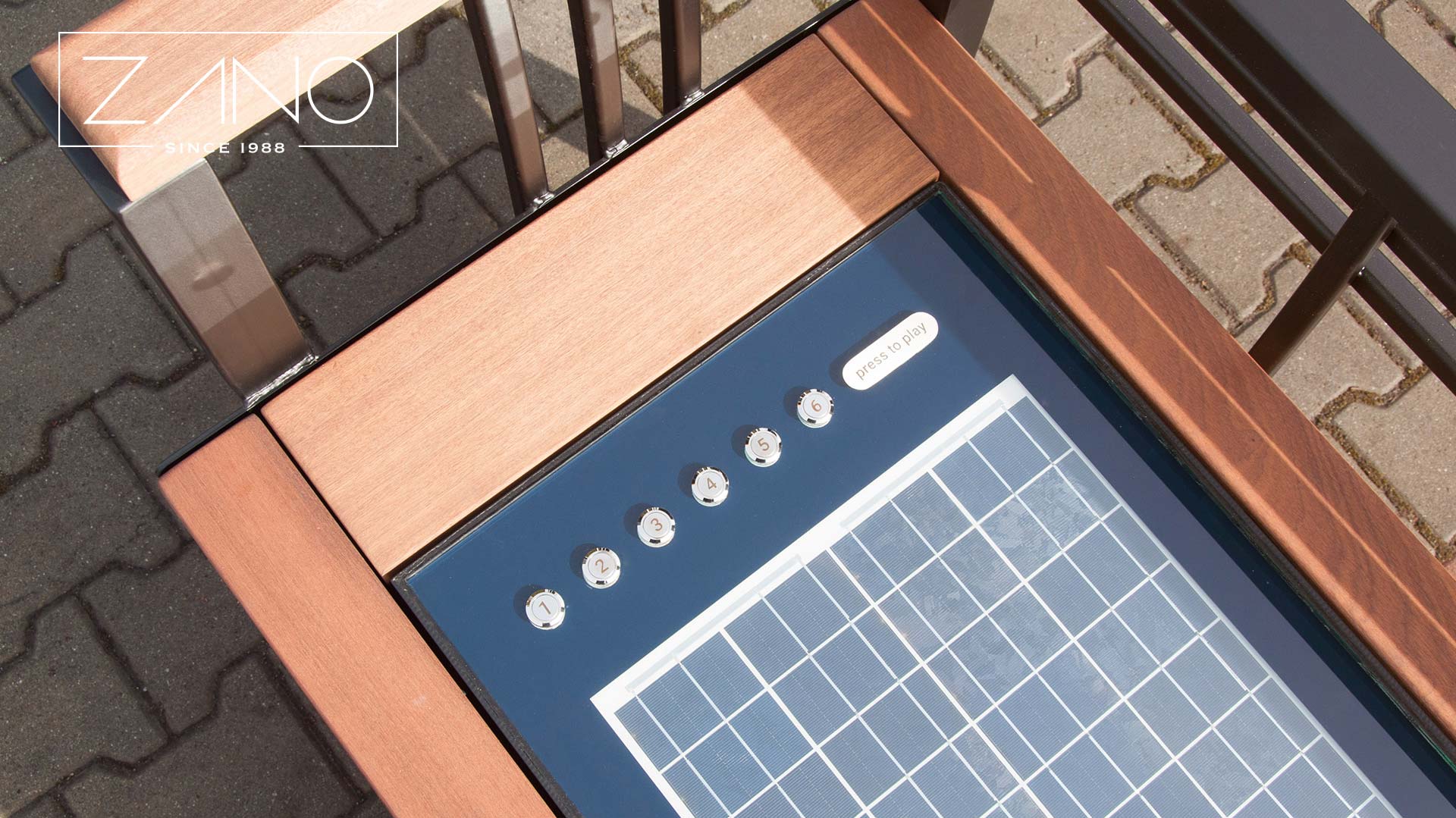

With a steel frame and wood trim surrounding solar panels on the seat, this Art Nouveau style bench brings high-tech convenience to traditional bench seating.

All the features expected of modern solar charging benches - USB and Qi charging outlets, ambient under bench lighting and WiFi capability (optional) – are incorporated into this elegant bench which will blend perfectly with similar style traditional benches in any park setting.

The powder coated frame can be supplied in any RAL color and you have a choice of lacquered softwood or oiled hardwood for the wood trim. Customized logos can be incorporated into the wood trim if required.

Download datasheet

5 independent solar panels
5 independent solar panels

The five PV panels are connected independently, eliminating charging problems with benches that have only a single solar array, where hard shading of just one full cell will drop the voltage of a solar panel to half in order to protect itself. If enough cells are hard shaded, the PV module will not convert any energy.

Multiple charging outlets
Multiple charging outlets

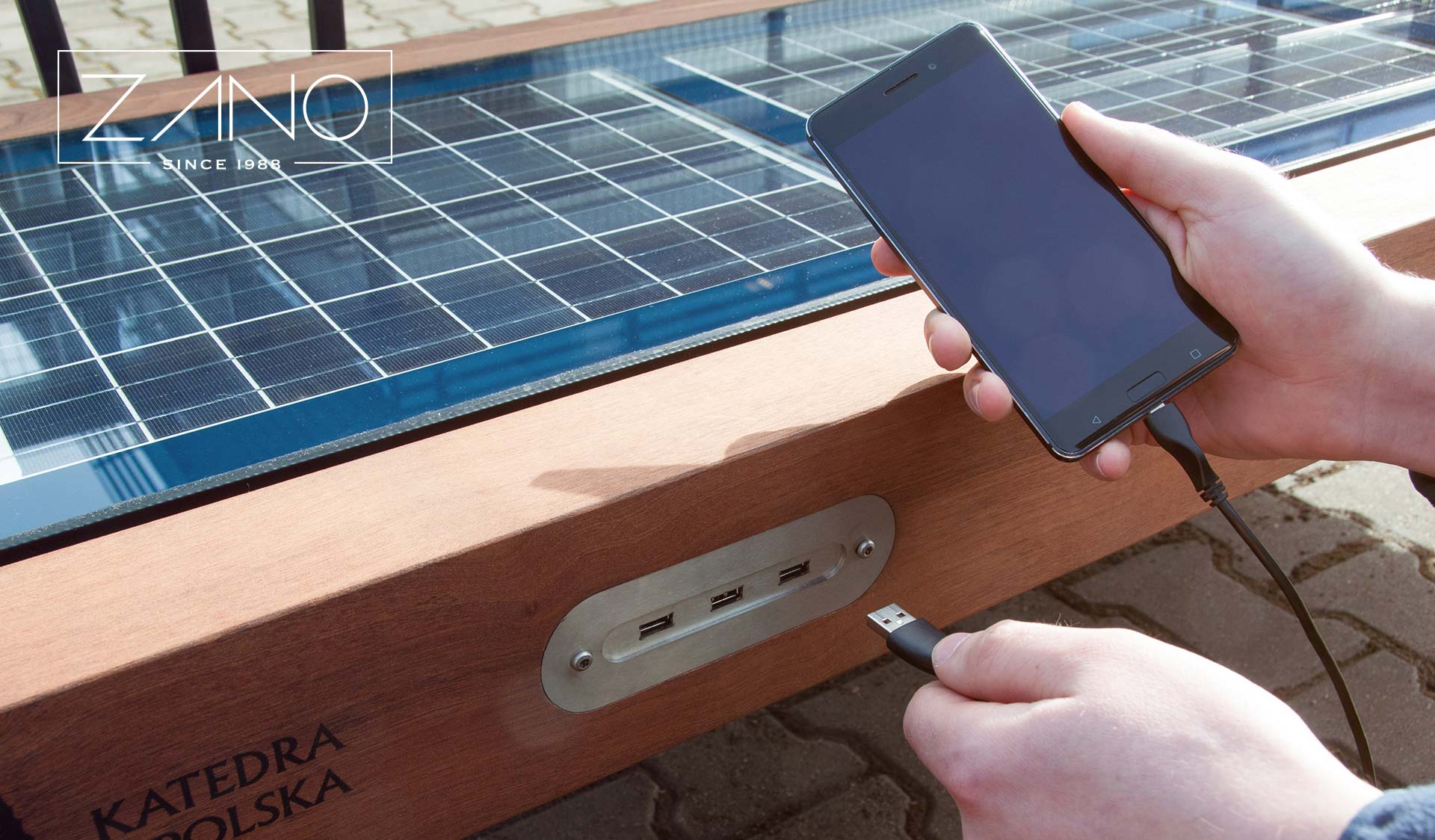

3 x USB charging outlets are included as standard. Additional Qi charging pads can be added at extra cost.

Ambient under bench lighting
Ambient under bench lighting

LED lights switch on automatically when darkness falls.

Tempered Glass
Tempered Glass

Solar panels are protected by 7/16” thick tempered glass.

Solid Wood Trim
Solid Wood Trim

Spruce wood trim surrounds the solar panels. Sapele or Iroko hardwood can be supplied instead of Spruce at extra cost.

Options

  • Bluetooth speaker

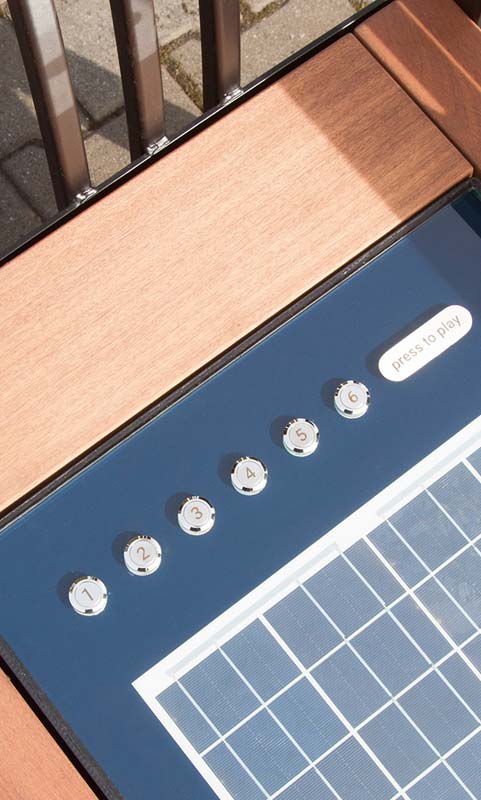

    The Bluetooth speaker can be additionally equipped with a music module with internal memory. Tracks are triggered by pressing the one of 5 vandal-proof buttons.

  • WiFi Hot spot

    WiFi modem can provide free internet access for users within the Photon seat zone. (requires service subscription)

  • Lithium batteries

    40 Ah Lithium batteries

  • Qi charger

    2A 10W wireless charging pads

Options

Specifications

Specifications

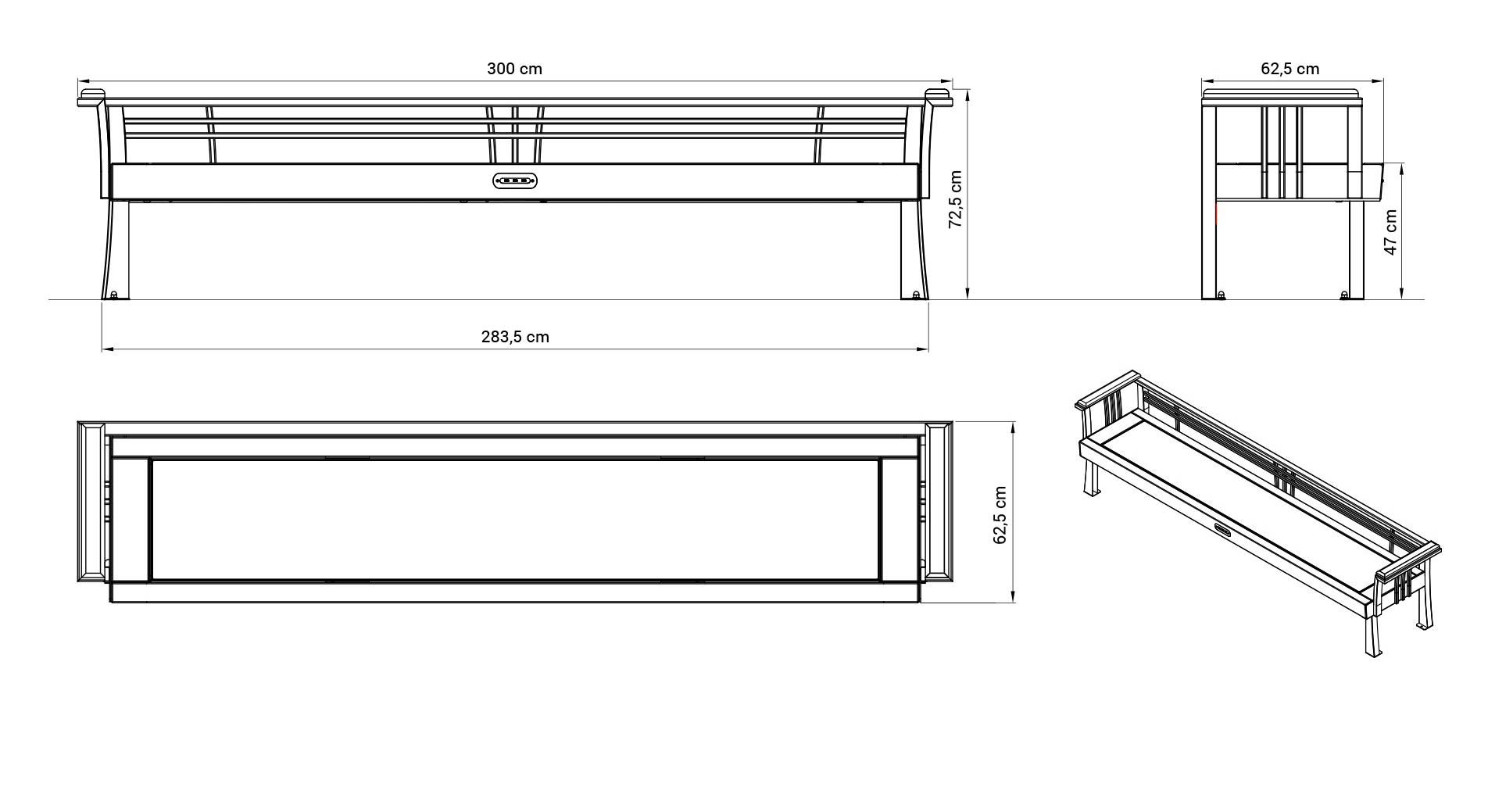

Size: 118”L x 24 1/2”W x 28 1/2”H
Weight: 350-376lb
Frame: Carbon steel, galvanized, powder coated.
Seat: Tempered glass 7/16” thick
Wood decoration: Lacquered softwood or oiled hardwood
Solar panels: 100W
Battery: 36 Ah
Charging outlets: 3 x USB quick charge, optional Qi wireless
Lighting: Ambient LED under bench
Warranty: 1 year on carbon steel components
